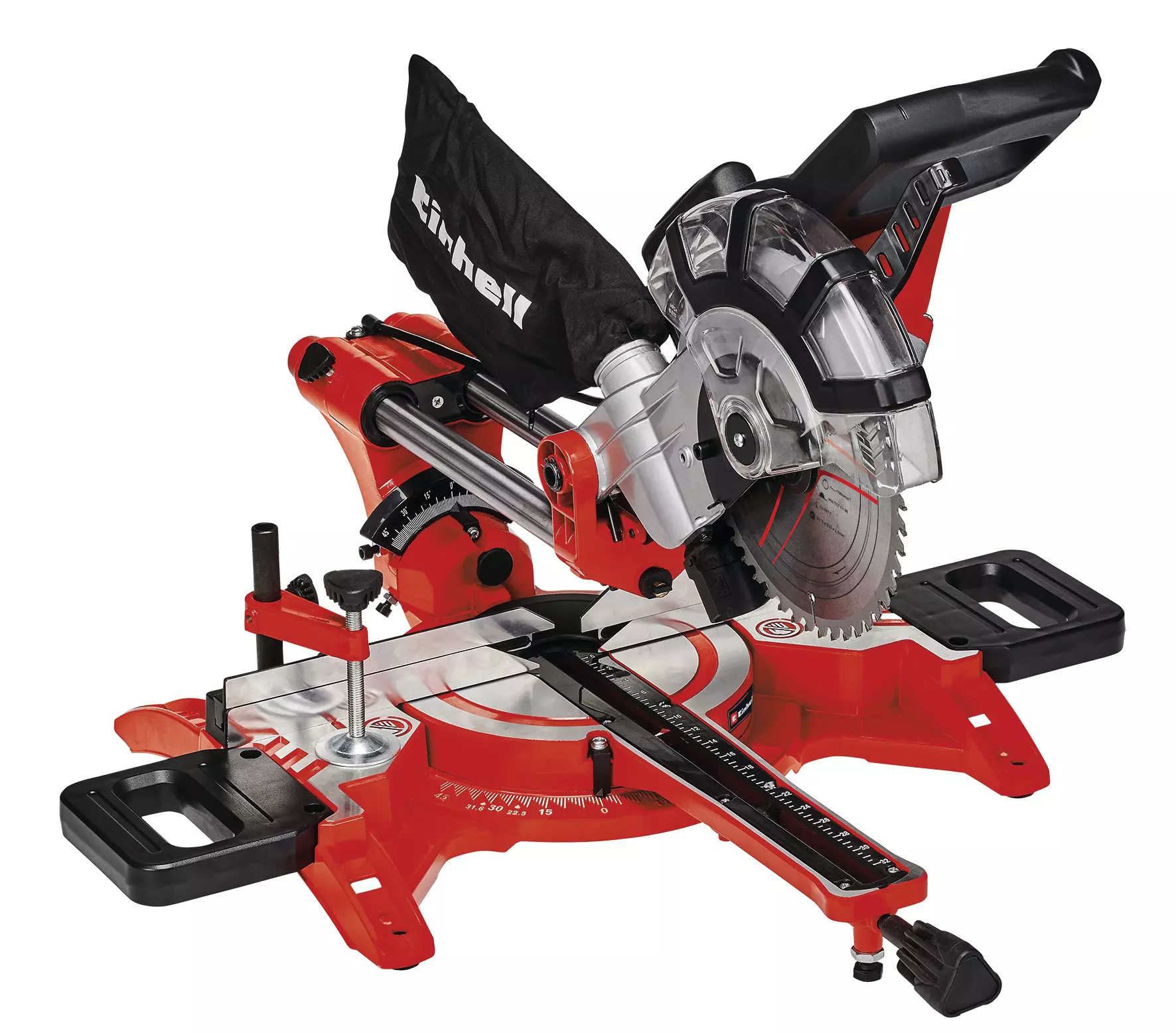

TC-SM 2131/1 Dual

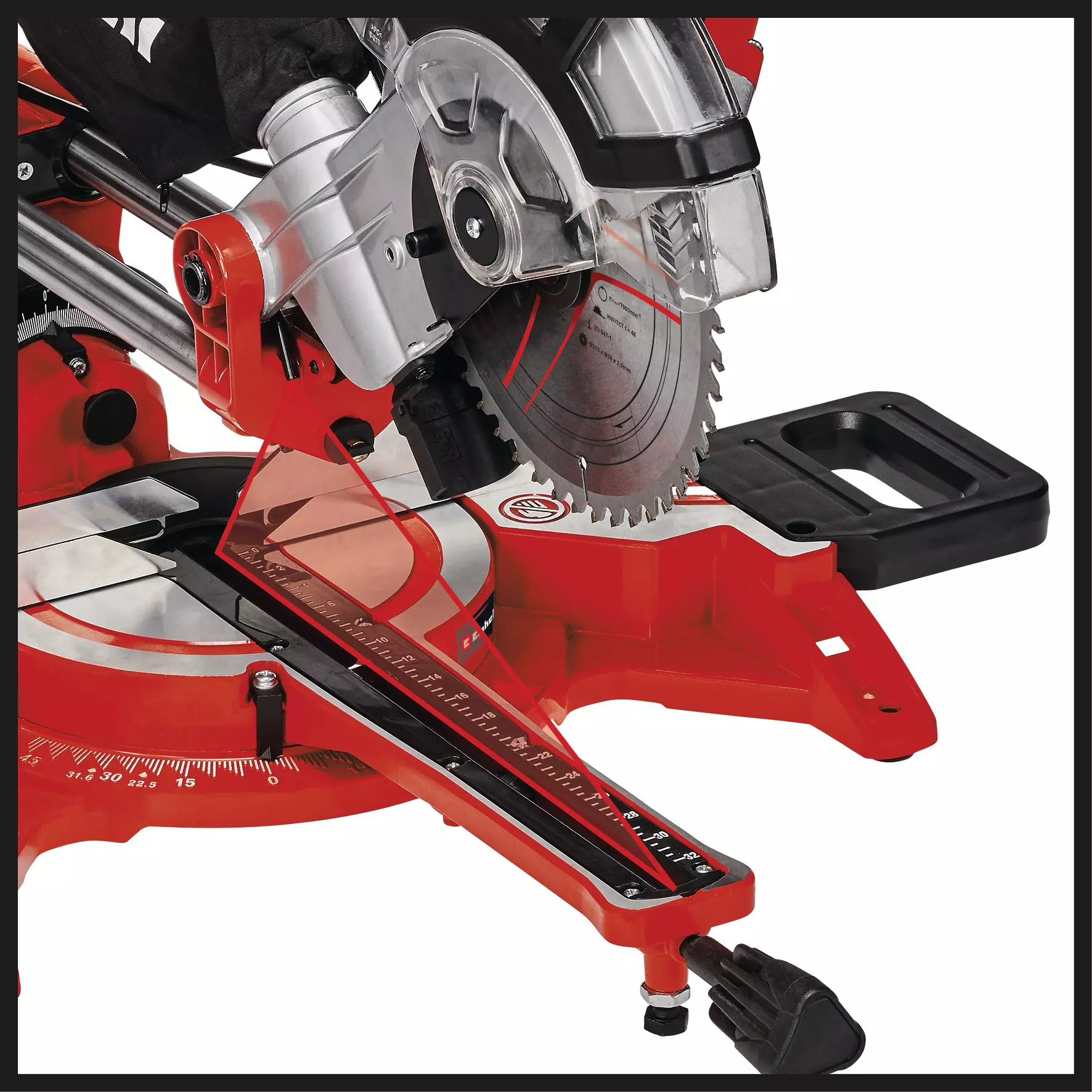

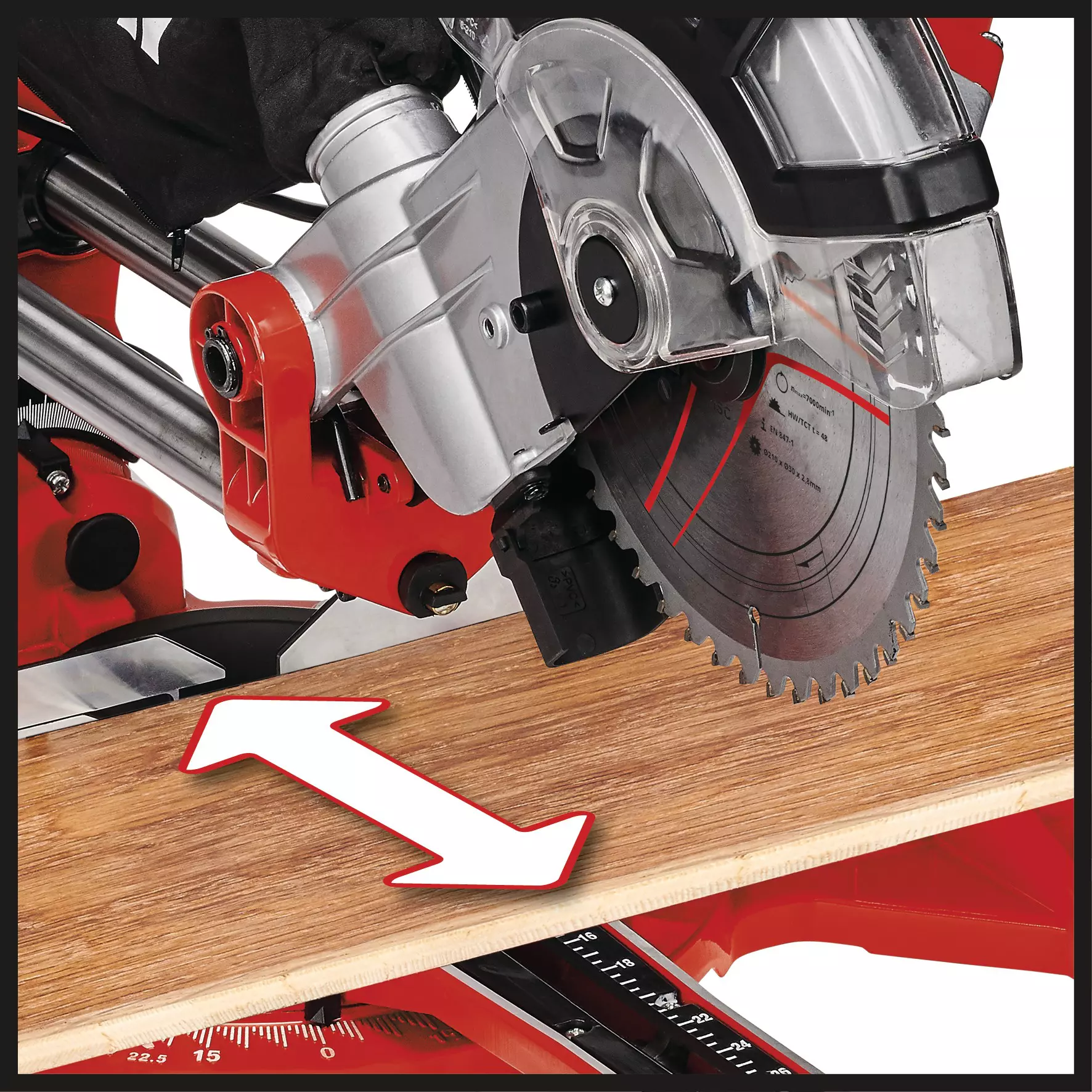

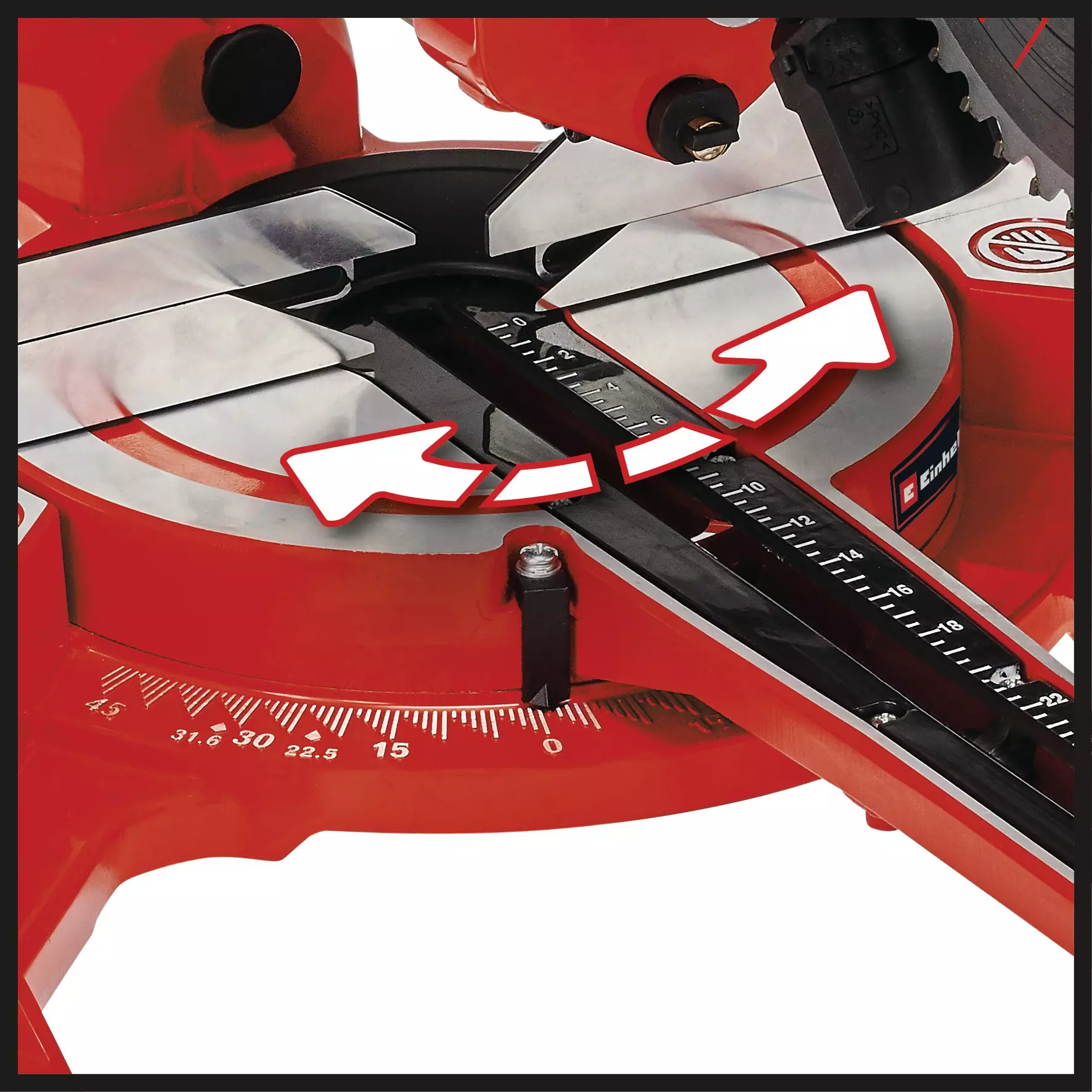

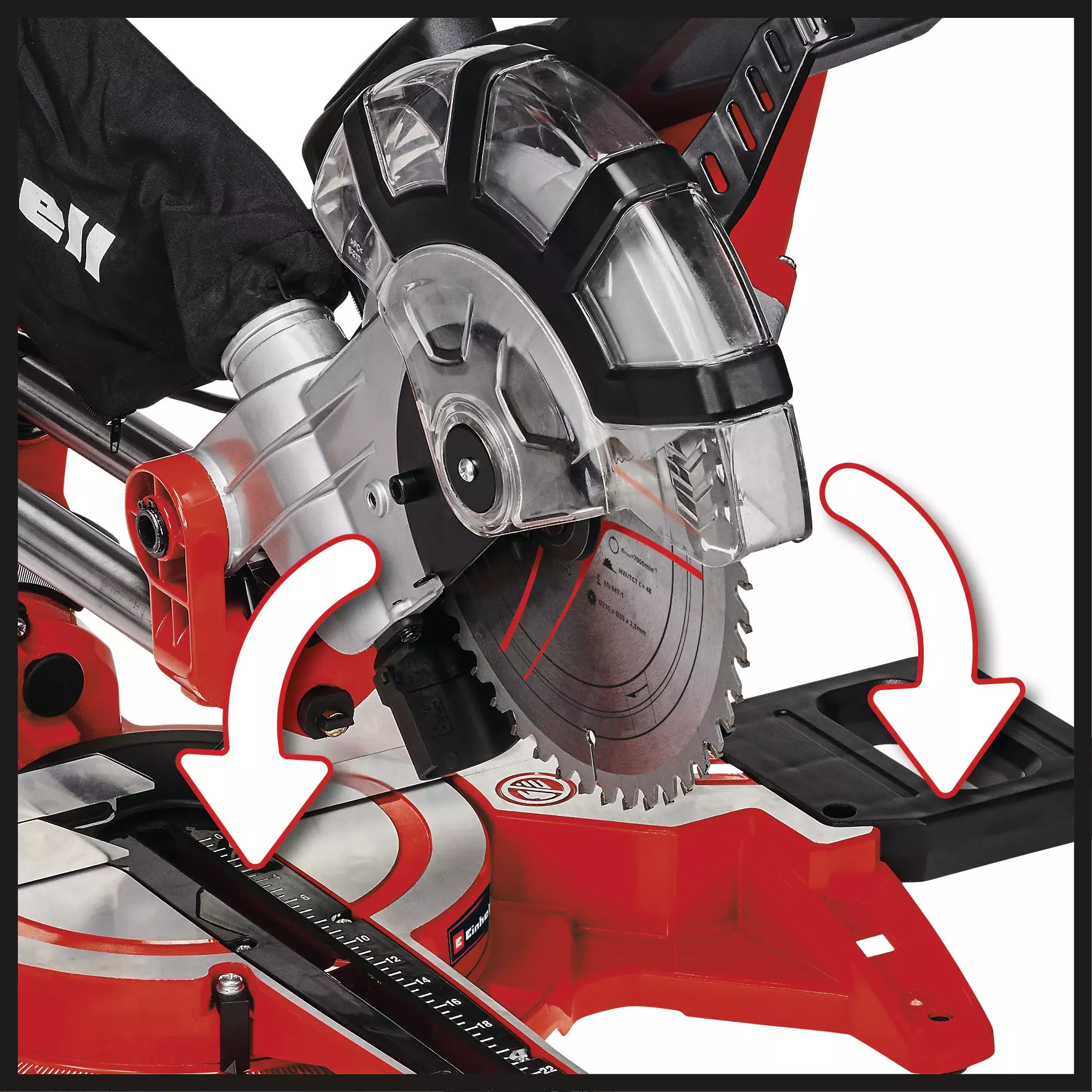

The TC-SM 2131/1 Dual is a drag, crosscut and mitre saw for cutting wood, laminated panels and plastic. The saw head can be tilted continuously to the left and right for high flexibility in setting mitres on two sides. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. The high-quality turntable of the TC-SM 2131 Dual comes with an exact angle adjustment facility for angular cuts which can be latched single handedly in various positions. The integrated drag function enables you to cut particularly wide workpieces. Workpiece supports on two sides, a clamping device for reliable securing of the workpiece and a workpiece stop with rails that adjust to the left and right enable safe, precise operation. The table insert is equipped with a practical scale for reading off the workpiece width. The high-grade carbide-tipped precision saw blade guarantees clean, powerful cutting results. The sawdust bag keeps the workplace clean, while the dust funnel behind the saw blade is another big step up in the effectiveness of sawdust removal. A transport brace is provided for easy and safe mobility.
Technical details
Cutting depth 45° x 45° | 36 mm |
Cutting depth 90° x 90° | 62 mm |
Cutting width 45° x 45° | 210 mm |
Cutting width 90° x 90° | 310 mm |
Idle speed max. | 4900 min^-1 |
Max. swivel range (saw head) | 45 ° |
Max. swivel range (saw table) | 47 ° |
Min. swivel range (saw head) | 45 ° |
Min. swivel range (saw table) | 47 ° |
Number of saw blade 1 teeth | 48 pcs |
Product weight | 11 Kg |
Saw blade 1 diameter | 210 mm |
Saw blade holder diameter | 30 mm |
Compact & handy design – powerful & flexible when working
The Einhell pull-cut mitre saw TC-SM 2131/1 Dual is equipped with a high-quality carbide saw blade and a 1800-watt motor: Precise and demanding cutting work is therefore no problem! Extendable workpiece supports on the left and right provide support when working with wider workpieces. The saw blade can be changed easily thanks to the easily accessible spindle lock. The mitre saw can be transported safely with the help of the transport lock.
Flexible in any position
Just do it yourself!
Precise in every situation

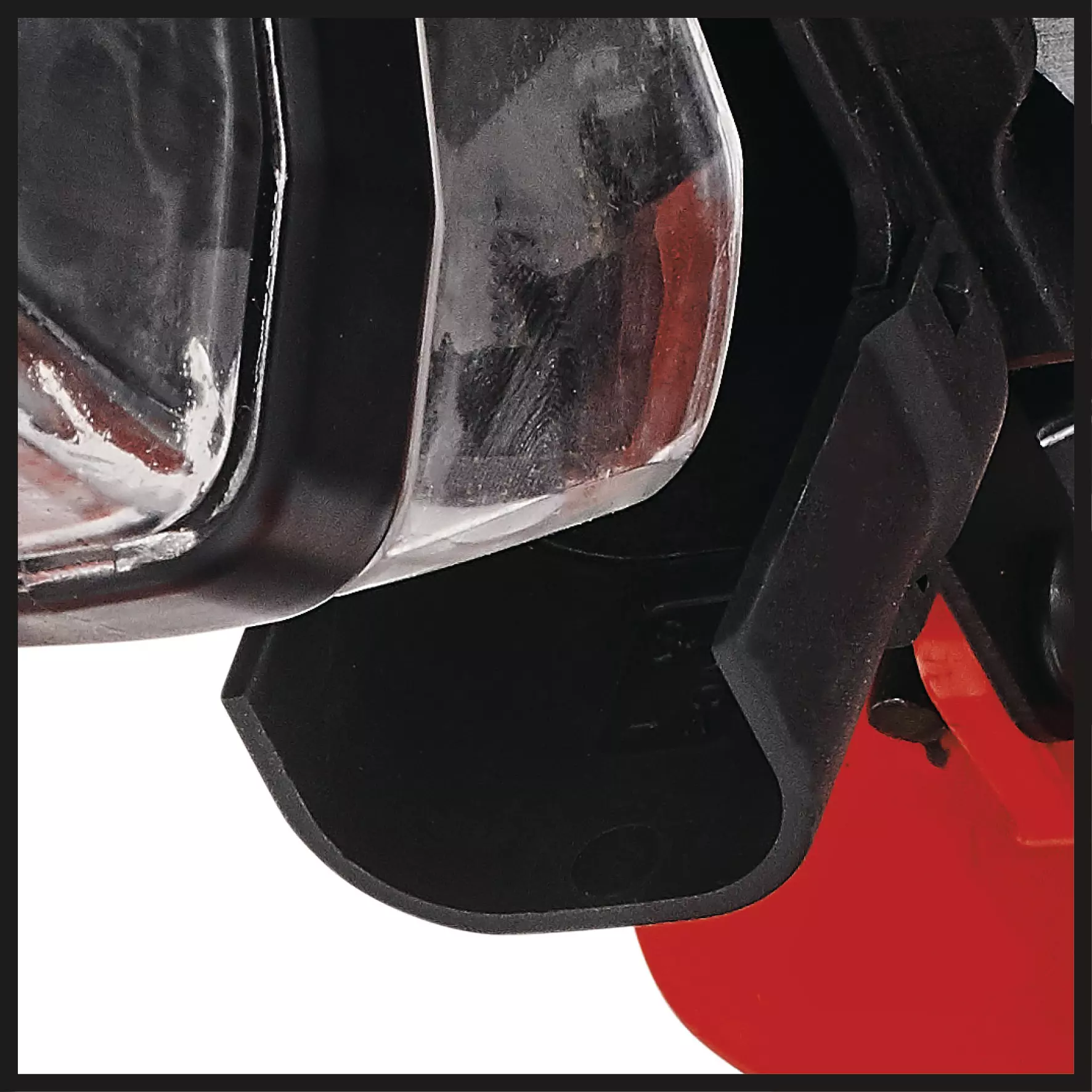

Free of dust and chips
